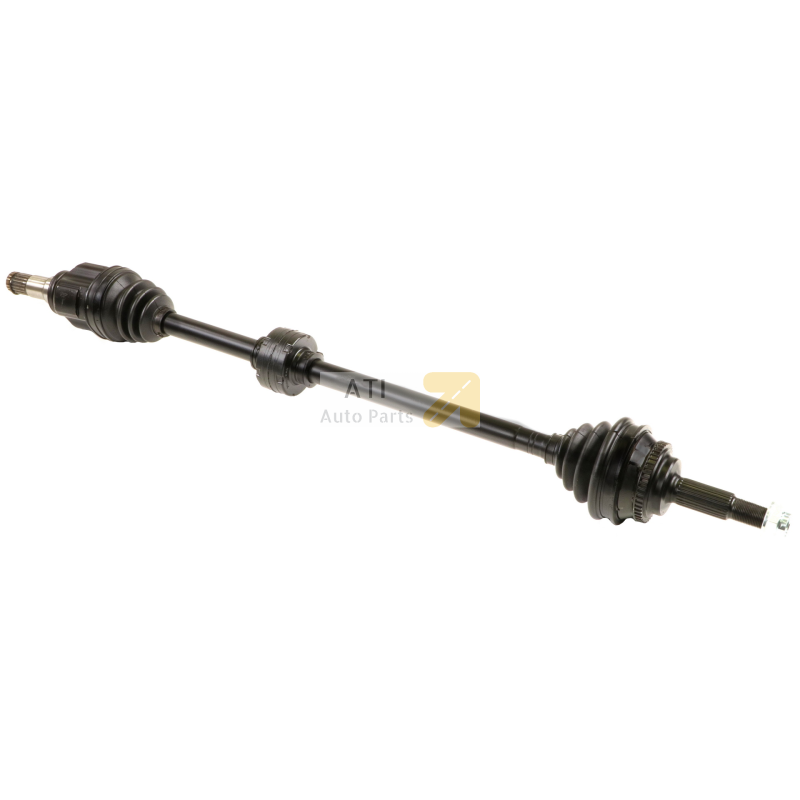

TOYOTA PRIUS II D

Ref : 68060

Family :TR

ABS on the vehicle  : Yes

Compressed length  : 920 mm

COTE ROUE

Observations  : Ø FILETAGE 22

Housing diameter  : 90 mm

Type and position (snap ring/circlip)  : Internal snap ring

Number of splines on inner race  : 23

Outer spline diameter  : 27 mm

Shoulder diameter  : 63 mm

Nombre de cannelures extérieures  : 26

COTE BOITE

Diamètre du bol  : 70 mm

Nombre de cannelures sur la noix  : 23

Number of external splines  : 20

Diamètre des cannelures extérieures  : 26 mm

Length of the gearbox output without seal seat  : 63 mm

Seal seat diameter  : 35 mm

Sealing kit COTE ROUE S5005 SOUFFELT C/R
COTE BOITE S6061 HYUNDAI
CV joint COTE ROUE JHT06
Fixation COTE ROUE ATEC020
Tripod joint COTE BOITE ATTRIF55

Equivalence to manufacturer references

  • TOYOTA : 4341047020
