Category :

Transmission

Return

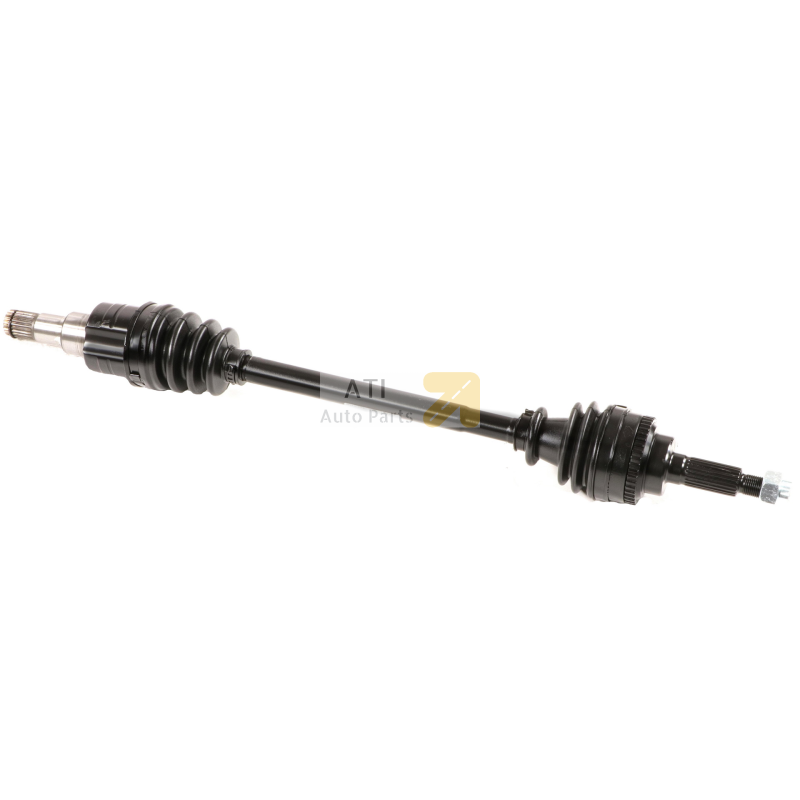

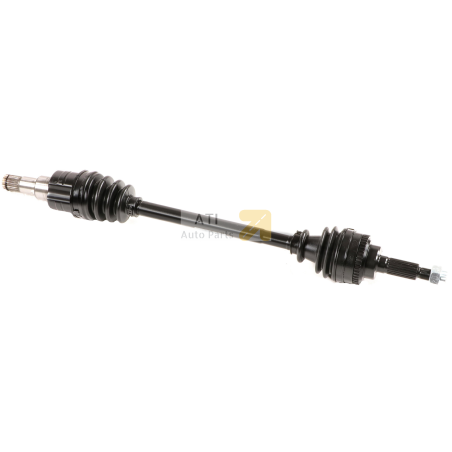

NISSAN PIXO AUTO G

Ref : 43667

Family :TR

Compressed length  : 645 mm

ABS on the vehicle  : Yes

COTE ROUE

Outer spline diameter  : 25 mm

Number of external splines  : 23

Diamètre du bol  : 72 mm

Type and position (snap ring/circlip)  : Internal snap ring

Nombre de cannelures sur la noix  : 19

Shoulder diameter  : 49 mm

COTE BOITE

Housing diameter  : 58 mm

Nombre de cannelures extérieures  : 22

Seal seat diameter  : 40 mm

Length of the gearbox output without seal seat  : 60 mm

Number of splines on inner race  : 28

Diamètre des cannelures extérieures  : 24.5 mm

Sealing kit COTE ROUE S5011 CITROEN/PEUGEOT
COTE BOITE S6053 DAIHATSU / NISSAN
Fixation COTE ROUE ECH033
CV joint COTE ROUE JHS66
ABS ring ATCOU031 COURONNE ABS SUZUKI IGNIS

Equivalence to manufacturer references

  • SUZUKI : 391014A04D
