Category :

Transmission

Return

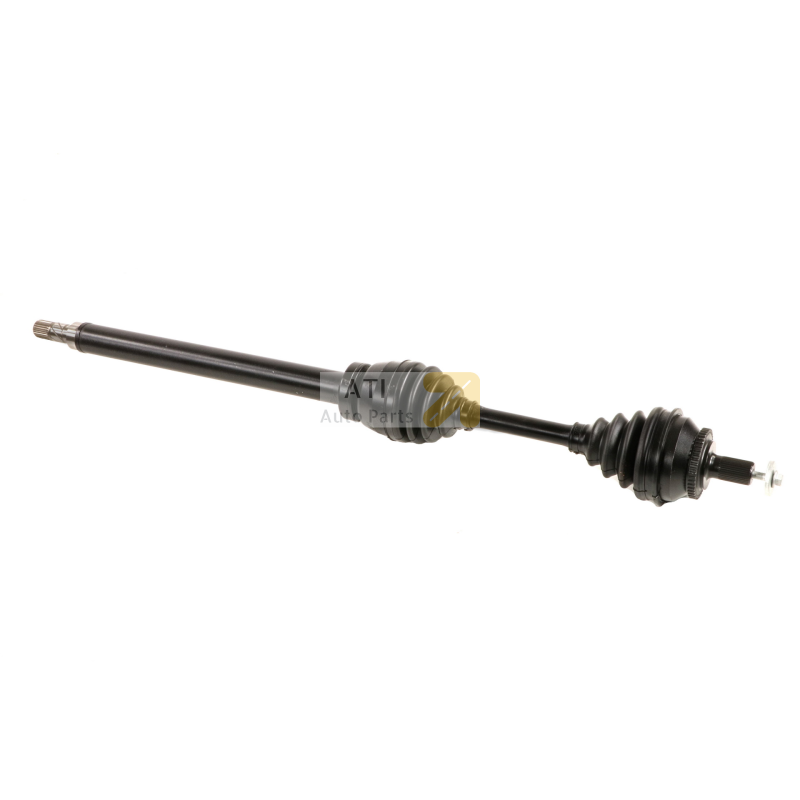

VOLVO V70 II / S60 I D

Ref : 40620

Family :TR

Length of the shaft (including bearing unit)  : 525 mm

Compressed length  : 1000 mm

ABS on the vehicle  : Yes

COTE ROUE

Type and position (snap ring/circlip)  : Centered snap ring

Observations  : vis diam 8

Shoulder diameter  : 56.5 mm

Number of splines on inner race  : 27

Nombre de cannelures extérieures  : 36

Diamètre du bol  : 98 mm

Diamètre des cannelures extérieures  : 27.5 mm

COTE BOITE

Number of external splines  : 26

Housing diameter  : 94 mm

Length of the gearbox output without seal seat  : 67 mm

Length of the shaft (including bearing unit)  : 530 mm

Outer spline diameter  : 26.5 mm

Seal seat diameter  : 40 mm

Sealing kit COTE ROUE ST3030 FORD/MERCEDES
ST3049 Kit soufflet
S5026 AUDI
COTE BOITE S5020 FIAT
Fixation COTE ROUE VIH001
CV joint COTE ROUE JHV62 VOLVO V70
Bearing COTE BOITE ATRLT009
ABS ring COUH032

Equivalence to manufacturer references

  • VOLVO : 36000532

  • VOLVO : 9181256

  • VOLVO : 8689214

  • VOLVO : 8601856

  • VOLVO : 30783097

  • VOLVO : 30735121

  • VOLVO : 8603793

  • VOLVO : 8602578

  • VOLVO : 8252049
