Search by vehicle
Category :
Transmission

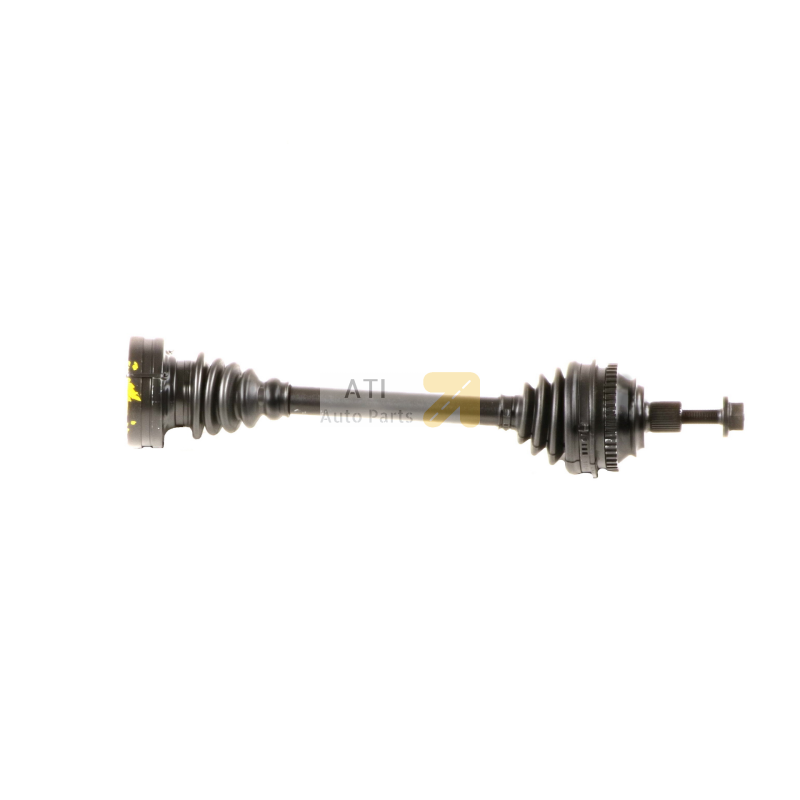

VW TRANSPORTER AV ABS G/D
Ref : 37272
Family :TR
Compressed length : 530 mm
Round flange diameter 1 : 108 mm
ABS on the vehicle : Yes
COTE BOITE
Observations : 6036 SANS CARTER
Nombre de cannelures sur la noix : 33
Outer diameter (gearbox side) : 108 mm
COTE ROUE
Number of splines on inner race : 33
Number of external splines : 38
Housing diameter : 98 mm
Type and position (snap ring/circlip) : Internal snap ring
Shoulder diameter : 60 mm
Outer spline diameter : 31 mm
| Fixation | COTE ROUE | VIH003 |
|
| Sealing kit | COTE ROUE | S5026 |
|
| S5026 |
|
||
| S5026 |
|
||
| S5026 |
|
||
| COTE BOITE | S6036 |
|
|
| S6022 |
|
||
| S6133 |
|
||
| S6133 |
|
||
| S6022 |
|
||

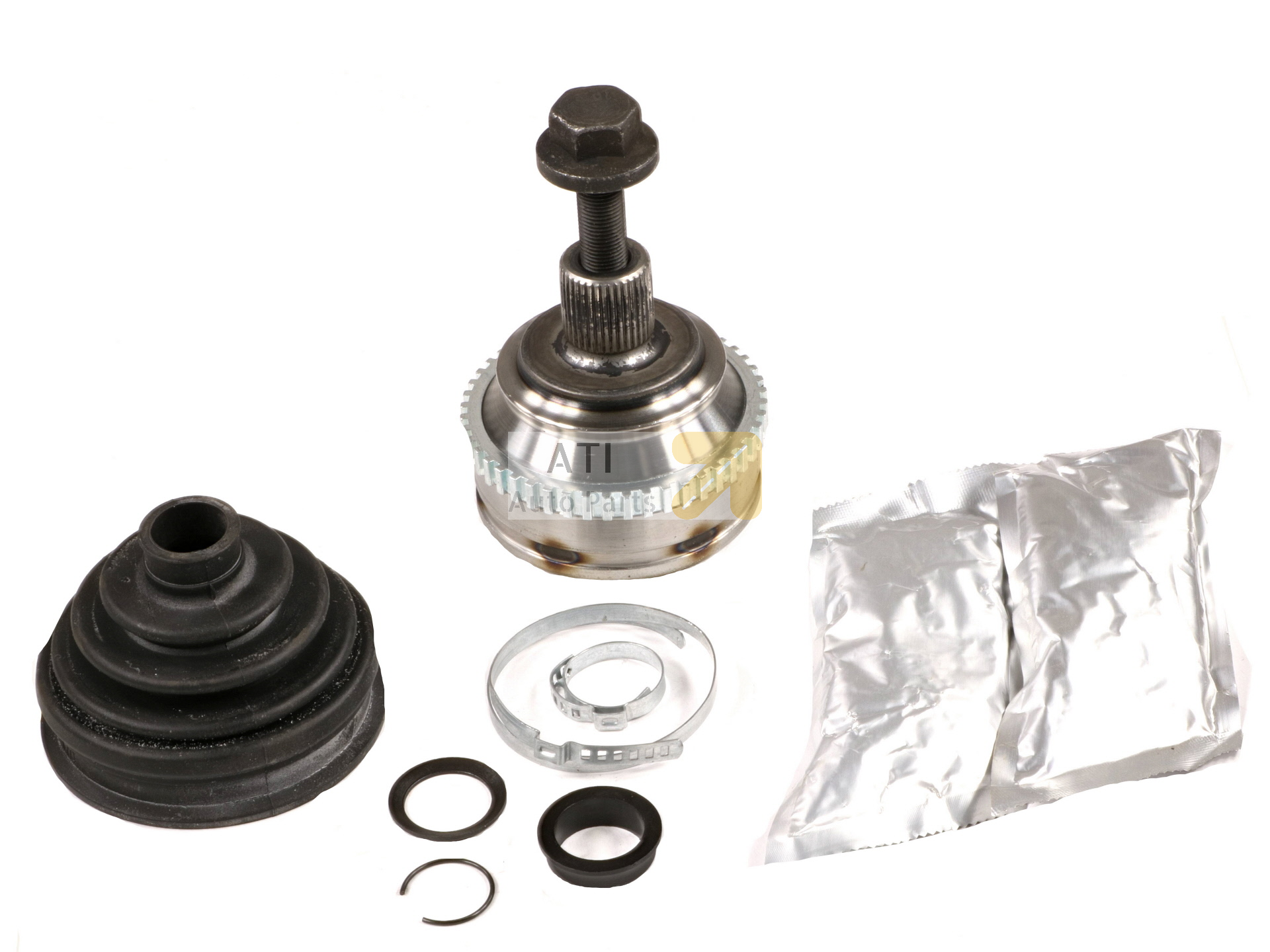

| CV joint | COTE ROUE | JHW3248 |
|
| JHW2748 |
|
||
| JHW2748 |
|
||
| JHW3248 |
|
||
| COTE BOITE | FLH27 |
|
|
| FLH32 |
|
||
| FLH32 |
|
||
| FLH27 |
|
||
| ABS ring | COUH035 |
|
|
| Transmission seal | BA4560 |
|
Equivalence to manufacturer references
-
VOLKSWAGEN : 701407449JX
-
AUDI : 701407449JX
-
VOLKSWAGEN : 701407271AC
-
VOLKSWAGEN : 701407271J
-
VOLKSWAGEN : 701407449AX
-
VOLKSWAGEN : 701407451CX
-
VOLKSWAGEN : 701407271C
-
VOLKSWAGEN : JZW407449JX
-
VOLKSWAGEN : 701407451C
-
VOLKSWAGEN : 701407449CX
-
VOLKSWAGEN : 701407271Q
-
VOLKSWAGEN : 701407271JX
-
VOLKSWAGEN : 701407271JV
-
VOLKSWAGEN : 701407271CX
-
SKODA : 701407451C
-
SKODA : 701407449CX
-
SKODA : 701407271Q
-
SKODA : 701407271JX
-
SKODA : 701407271JV
-
SKODA : 701407271CX
-
SEAT : 701407451C
-
SEAT : 701407449CX
-
SEAT : 701407271Q
-
SEAT : 701407271JX
-
SEAT : 701407271JV
-
SEAT : 701407271CX
-
AUDI : 701407451C
-
AUDI : 701407449CX
-
AUDI : 701407271Q
-
AUDI : 701407271JX
-
AUDI : 701407271JV
-
AUDI : 701407271CX
