Category :

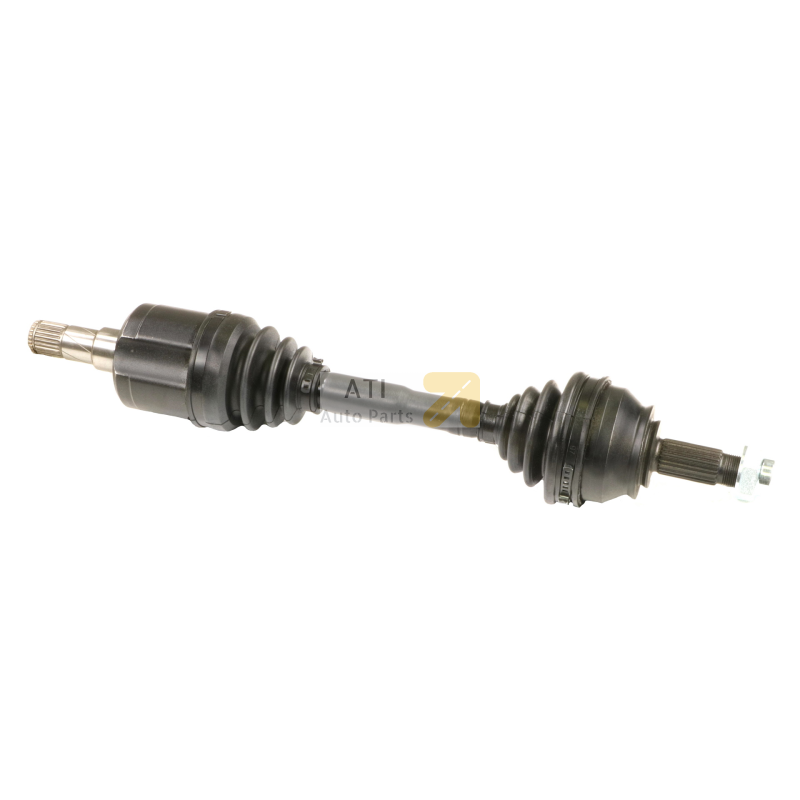

Transmission
Ref : 33751
Family :TR
ABS on the vehicle : Yes
Compressed length : 585 mm
Height : 25 mm
Nut type : Washer
Thread pitch type : 24X150
COTE BOITE
Beads thickness : 10.5 mm
Diameter (big) : 73 mm
Diameter (little) : 23 mm
Length : 87 mm
Type of material : NITRILE
COTE ROUE
Diamètre (grand) : 78 mm
Diamètre (petit) : 23 mm
Outer spline diameter : 27 mm
Housing diameter : 86 mm
Shoulder diameter : 51 mm
Longueur : 110 mm
Number of external splines : 25
Number of splines on inner race : 35
Number of grooves : 1
Type and position (snap ring/circlip) : Internal snap ring
Type de matière : NÉOPRÈNE
| Fixation | COTE ROUE | ATEC021 |
|
| Sealing kit | COTE ROUE | S5016 |
|
| COTE BOITE | S6194 |
|
|
| S6287 |
|
||
| CV joint | COTE ROUE | JHO75 |
|
Equivalence to manufacturer references
GENERAL MOTORS : 93169689
GENERAL MOTORS : 93189675
OPEL : 13149836
OPEL : 374647
OPEL : 375044
VAUXHALL : R1640099
